EV-Switch tm / TFI-24 Manual 240VAC Switch
The EV-Switch tm / TFI-24 is a Manual 240VAC Switch to time-share an existing 240VAC outlet between two AC loads. The user simply plugs the cable to the existing 240VAC outlet, then connects an AC load, e.g., an electric dryer to Dr side and another AC load, e.g., an EV charging unit to the EV side.
The User moves the [Japanese-technology, heavy-duty] switch to select either the Dr(yer) or EV port. AC connection is determined by the switch.
When the switch is on Dr side, the (left) LED is turned on and Dr side receptacle gets AC connection. (EV side is completely OFF).
When the switch is on EV side, the AC meter is turned on and EV side receptacle gets AC connection. (Dr side is completely OFF).

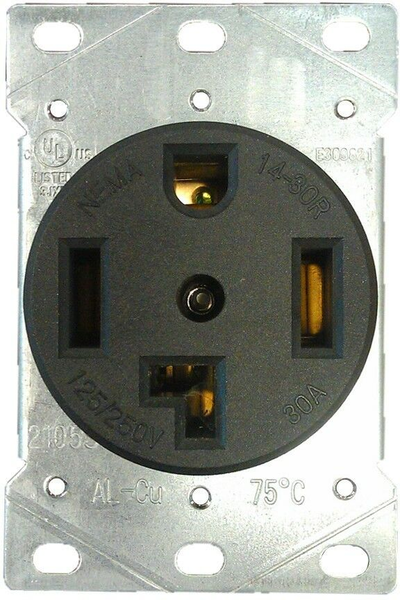

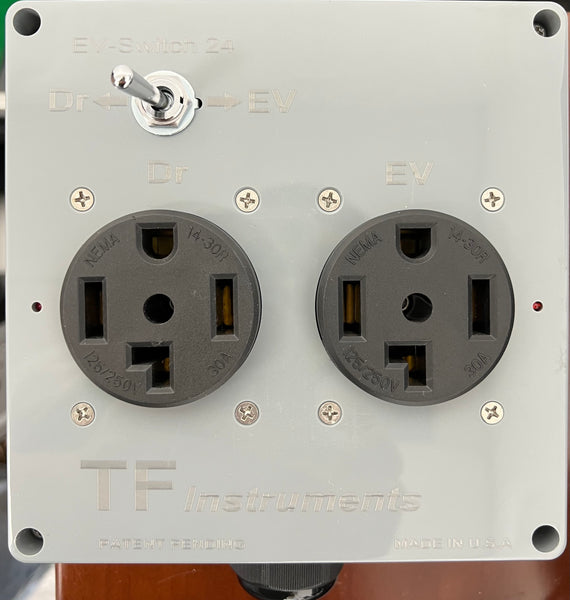

The EV-Switch tm / TFI-24 comes with two generic NEMA 14-30R receptacles and does not have an AC multi-meter (Japanese technology, measurements are within 1% accuracy) and can operate at 24A up to 45C (113F) ambient temperature.

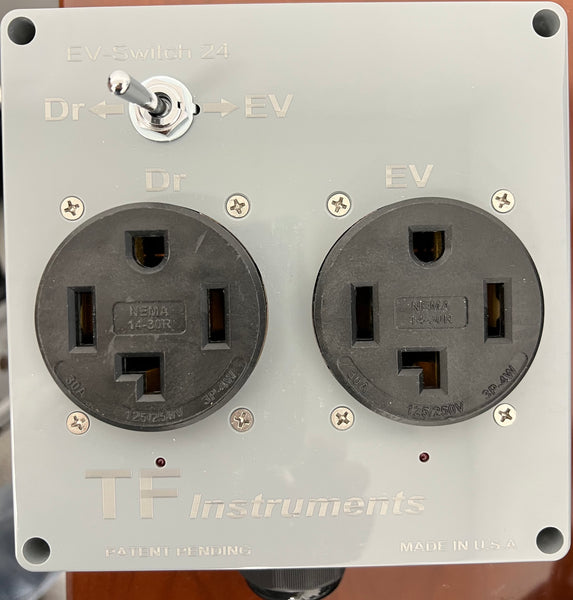

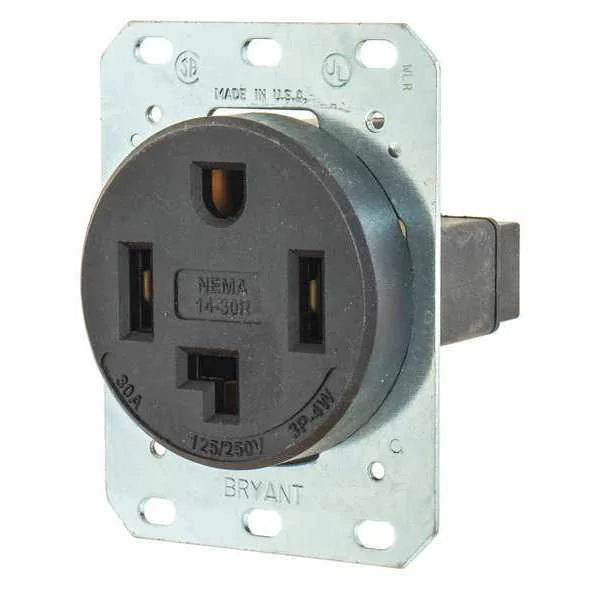

The option -B comes with two industrial-grade Bryant NEMA 14-30R receptacles.

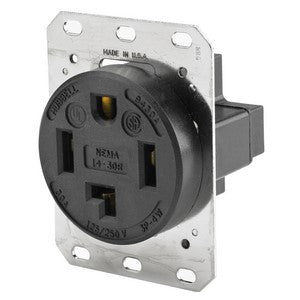

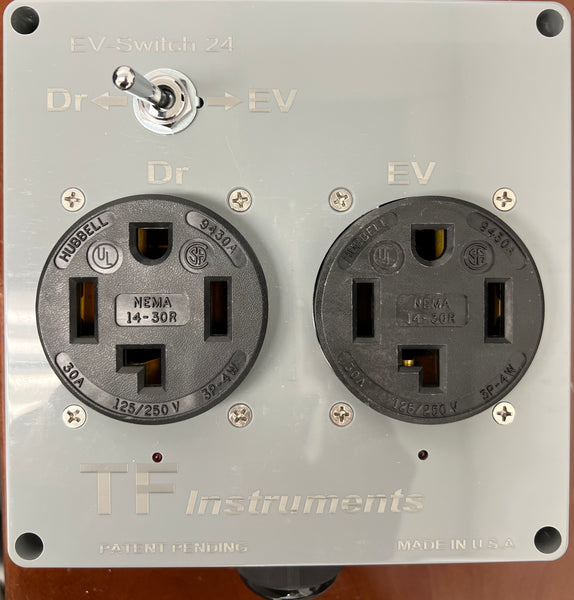

The option -H comes with two industrial-grade Hubbell NEMA 14-30R receptacles.

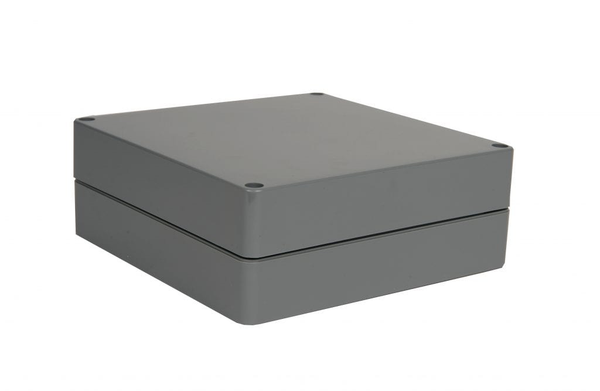

The EV-Switch tm / TFI-24 box dimensions are : 6.3 in x 6.3 in x 2.36 in.
(Limited) Warranty period : EV-Switch tm / TFI-24 : 1 year ; EV-Switch tm / TFI-24B : 2 years ; EV-Switch tm / TFI-24H : 3 years.
Buyer 's Tip :
This product is for a user with only one electric vehicle to charge at 24A and a (after-1996) NEMA 4-prong 14-30R outlet. Note that the generic NEMA 14-30R receptacles are not as sturdy and reliable as the industrial-grade ones. Note also that any [inadvertent] EV charging over-current condition (>30A) for the TFI-24 is handled by the house 30A circuit-breaker.
Operating Temperature Range : -10 C to 45 C (14 F to 113 F)
Note: Option -H (Hubbell 14-30R receptacles) may currently require long lead time due to limited availability !
What 's in the Box :
1. EV-Switch tm / TFI-24x unit with standard 4ft-cable
2. 4X Mounting brackets + 4X screws
How To Set-Up :
