EV-Switch tm / TFI-200 Manual 240VAC Switch + AC Meter
The EV-Switch tm / TFI-200 is a Manual 240VAC Switch to time-share an existing 240VAC outlet between two AC loads. The user simply plugs the cable to the existing 240VAC outlet, then connects an AC load, e.g., an electric dryer to Dr side and another AC load, e.g. an EV charging unit to EV side.
The User moves the [Japanese-technology, heavy-duty] switch to select either the Dr(yer) or EV port. AC connection is determined by the switch.
When the switch is on Dr side, the (left) LED is turned on and Dr side receptacle gets AC connection. (EV side is completely OFF).
When the switch is on EV side, the AC meter is turned on and EV side receptacle gets AC connection. (Dr side is completely OFF).

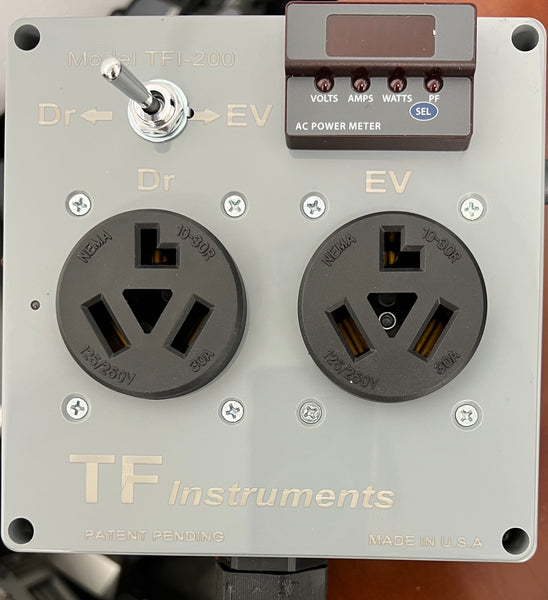

The EV-Switch tm / TFI-200 comes with two generic NEMA10-30R receptacles and an AC multi-meter (Japanese technology, measurements are within 1% accuracy) and can operate at 24A up to 45C (113F) ambient temperature.

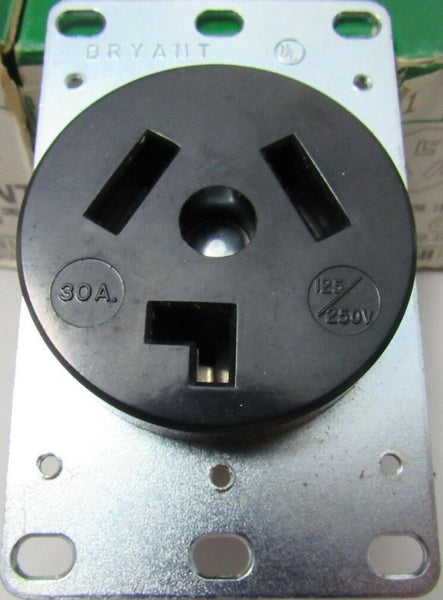

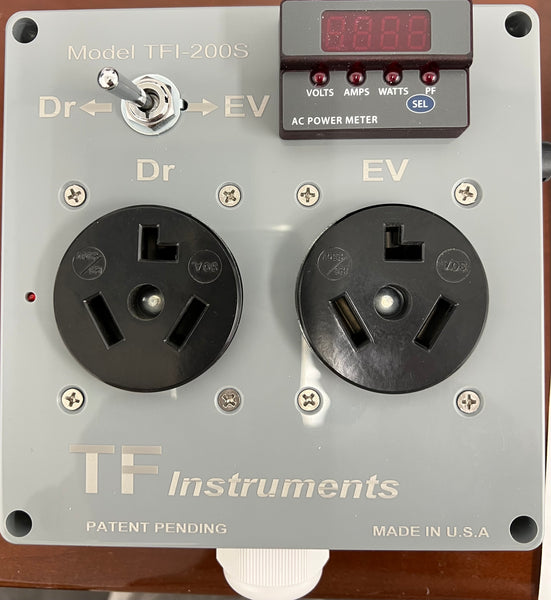

The option -B comes with two Bryant industrial-grade NEMA 10-30R receptacles

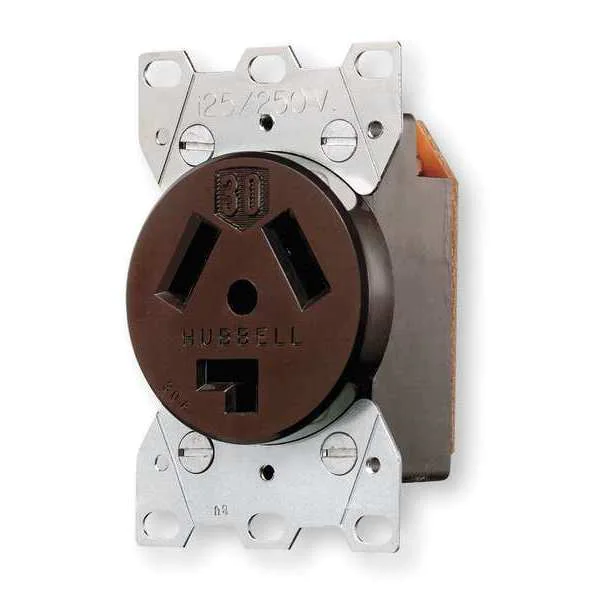

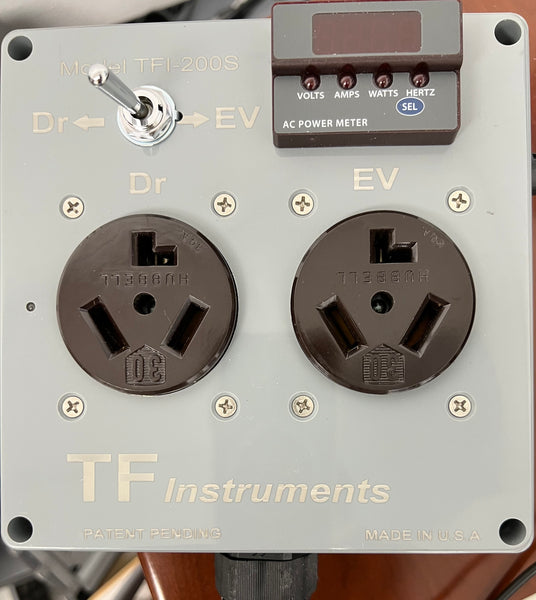

The option -H comes with two Hubbell industrial-grade NEMA 10-30R receptacles.

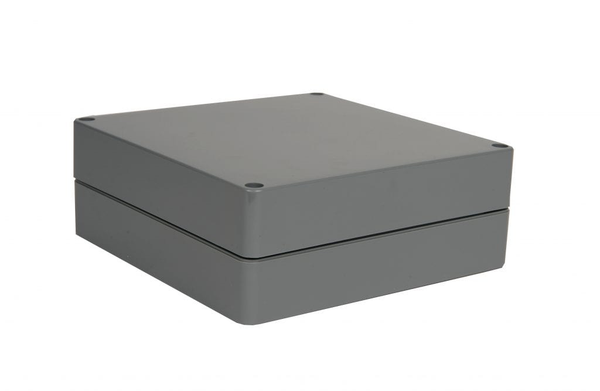

The EV-Switch tm / TFI-200 box dimensions are : 6.3 in x 6.3 in x 2.36 in.
(Limited) Warranty period : EV-Switch tm / TFI-200 : 1 year ; EV-Switch tm / TFI-200B : 2 years ; EV-Switch tm / TFI-200H : 3 years.
Buyer 's Tip :
This product is for a user, with only one electric vehicle to charge at 24A and a (pre-1996) NEMA 10-30R outlet, who wants the additional convenience and safety enhancement of a Japanese-technology AC meter. Note that :

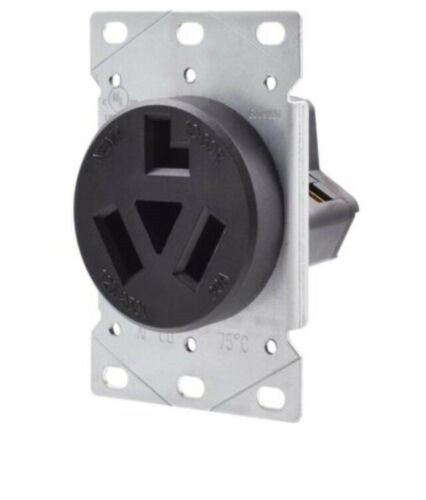

1. The generic NEMA 10-30R receptacles are not as sturdy and reliable as the Hubbell industrial-grade ones.
2. Any [inadvertent] EV charging over-current condition (>30A) for the TFI-200 is handled by the house 30A circuit-breaker.
Operating Temperature Range : 0 C to 45 C (32 F to 113 F)
Note: Option -B (Bryant 10-30R receptacles) may currently require long lead time due to limited availability !
What 's in the Box :
1. EV-Switch tm / TFI-200x unit with standard 4ft-cable
2. 4X Mounting brackets + 4X screws
3. Spare fuse
