EV-Switch tm / TFI-20 Manual 240VAC Switch

Regular price $309.00 $0.00 Unit price per
Shipping calculated at checkout.

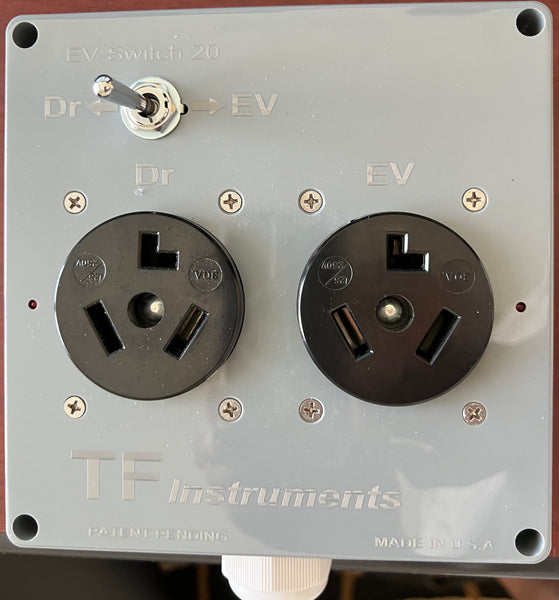

The EV-Switch / TFI-20 is a Manual 240VAC Switch to time-share an existing 240VAC outlet between two AC loads. The user simply plugs the cable to the existing 240VAC outlet, then connects an AC load, e.g., an electric dryer to Dr side and another AC load, e.g., an EV charging unit to the EV side.

The User moves the [Japanese-technology, heavy-duty] switch to select either the Dr(yer) or EV port.  AC connection is determined by the switch.
When the switch is on Dr side, the (left) LED is turned on and Dr side receptacle gets AC connection. (EV side is completely OFF).
When the switch is on EV side, the AC meter is turned on and EV side receptacle gets AC connection. (Dr side is completely OFF).

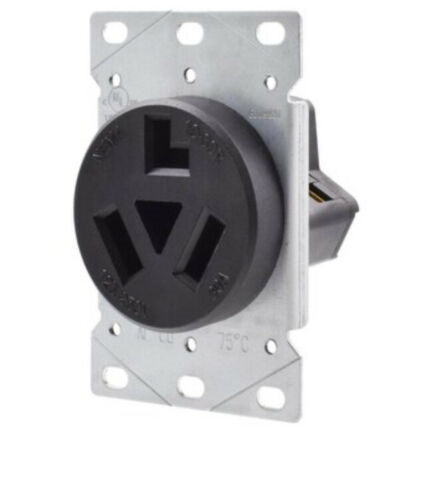

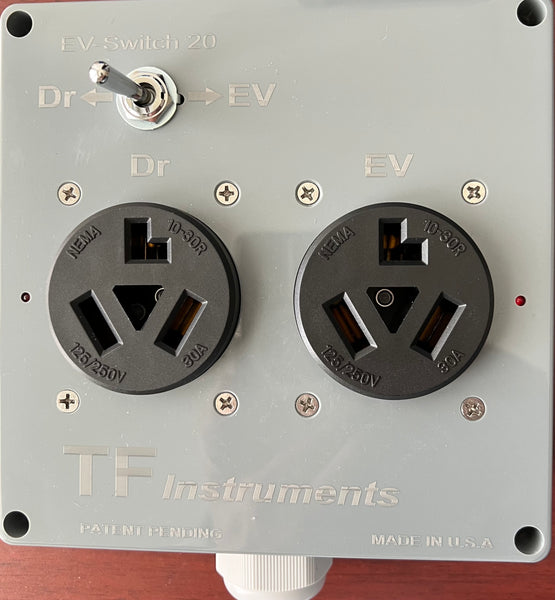

The EV-Switch / TFI-20 comes with two generic NEMA 10-30R receptacles and does not have an AC multi-meter (Japanese technology, measurements are within 1% accuracy) and can operate at 24A up to 45C (113F) ambient temperature.

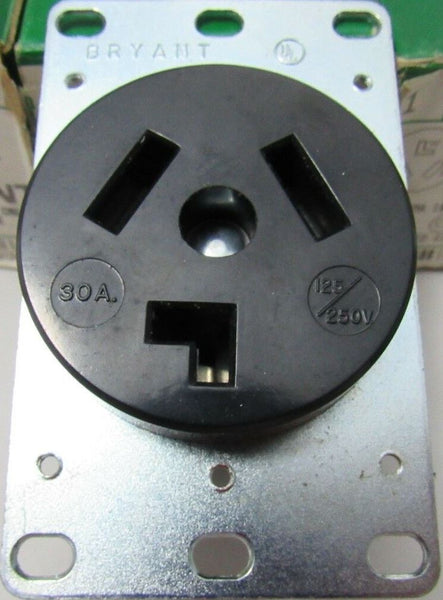

The option -B comes with two Bryant industrial-grade NEMA 10-30R receptacles.

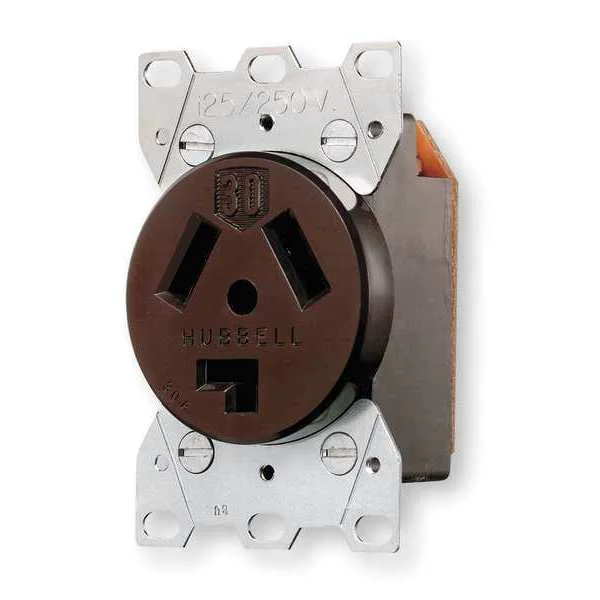

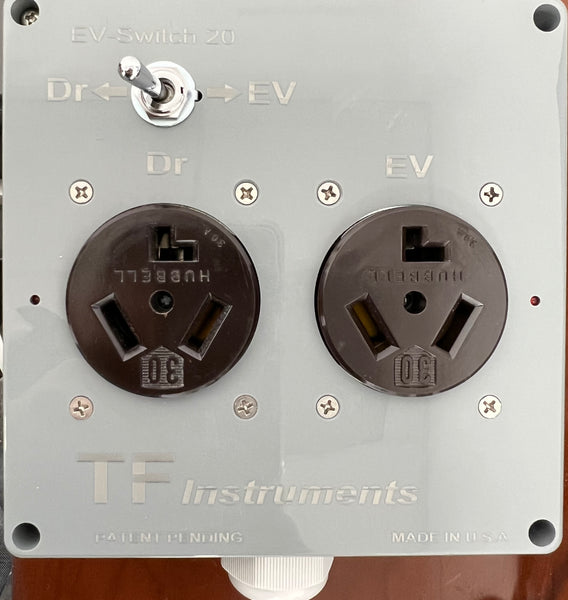

The option -H comes with two Hubbell industrial-grade NEMA 10-30R receptacles.

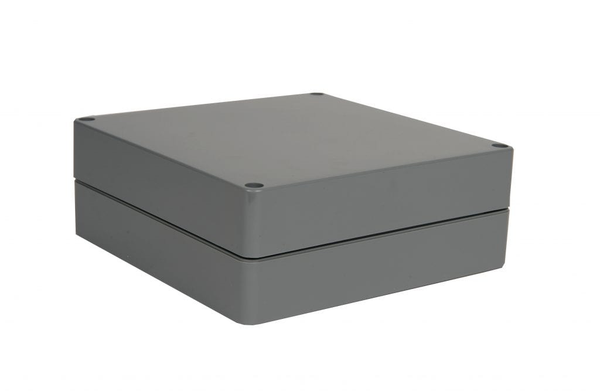

The EV-Switch / TFI-20 box dimensions are : 6.3 in x 6.3 in x 2.36 in.

(Limited) Warranty period : EV-Switch / TFI-20 : 1 year ; EV-Switch / TFI-20B : 2 years ; EV-Switch / TFI-20H : 3 years.

Buyer 's Tip :

This product is for a user with only one electric vehicle to charge at 24A and a (pre-1996) NEMA 3-prong 10-30R outlet. Note that the generic NEMA 10-30R receptacles are not as sturdy and reliable as the industrial-grade ones. Note also that any [inadvertent] EV charging over-current condition (>30A) for the TFI-20 is handled by the house 30A circuit-breaker.

Operating Temperature Range : -10 C to 45 C (14 F to 113 F)

Note: Option -B (Bryant 10-30R receptacles) may currently require long lead time due to limited availability !


What 's in the Box :

1. EV-Switch / TFI-20x unit with standard 4ft-cable

2. 4X Mounting brackets + 4X screws

How To Set-Up :

TFI AC Switch Set-up Examples
